| Modello: | EJX110A-FMS5G-914DJ/KS26/M01/T13/D3 | Codice di HS: | 90261000 |
|---|---|---|---|
| Accuratezza:: | accuratezza del ± 0,04% (0,025% opzioni di accuratezza disponibili) | produttore: | YOKOGAWA |
| Garanzia: | 12 mesi | Nome di prodotto: | Moltiplicatore di pressione differenziale |
| Tempo di reazione: | spettrografia di massa 90 | STABILITÀ: | ± 0,1% a 15 anni di stabilità |

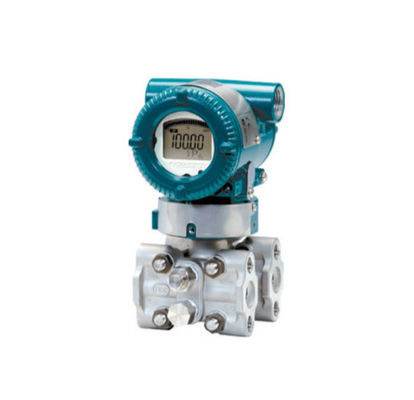

EJX110A-FMS5G-914DJ/KS26/M01 EJX110A Differential Pressure Transmitter
Description:
Manufacturer : Yokogawa
Model: EJX110A-FMS5G-914DJ/KS26/M01/T13/D3
Model : EJX110A - Differential pressure transmitter
Output signal : F - Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C25T02-01EN)
Measurement span (capsule) : M - 0.5 to 100 kPa (2 to 400 inH2O)
Process connections : 5 - without process connector (1/4 NPT female on the cover flanges)
Bolts and nuts material : G - 316L SST
Installation : 9 - Horizontal piping and left side high pressure
Amplifier housing : 1 - Cast aluminum alloy
Integral indicator : D - Digital indicator
Mounting bracket : J - 316 SST 2-inch pipe mounting, flat type (for horizontal piping)
Dimensions (HxWxD), approx : 17.5cm x 11cm x 9.5cm
Shipping Weight : 8Kg
0 = Always 0
Shipping weight : 7KG
Additional Informaiton:
The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.The EJX110A is the traditional-mount Differential Pressure Transmitter in the series.
EJX110A features include:
± 0.04% Accuracy (0.025% Accuracy option available)
± 0.1% per 15 years Stability
90 ms Response Time
3,600 psi MWP
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)
EJX110A Differential Pressure Transmitter
EJX118A Diaphragm Sealed Differential Pressure Transmitter
EJX130A Differential Pressure Transmitter
EJX120A Differential Pressure Transmitter
EJX310A Absolute Pressure Transmitter
EJX430A Gauge Pressure Transmitter
EJX440A Gauge Pressure Transmitter
EJX510A and EJX530A Absolute and Gauge Pressure Transmitter
EJX610A and EJX630A Absolute and Gauge Pressure Transmitter
EJX210A Flange Mounted Differential Pressure Transmitter
EJA110E Differential Pressure Transmitter
EJA115E Low Flow Transmitter
EJA118E Diaphragm Sealed Differential Pressure Transmitter
EJA510E and EJA530E Absolute and Gauge Pressure Transmitter
EJA120E Differential Pressure Transmitter
EJA130E Differential Pressure Transmitter
EJA210E Flange Mounted Differential Pressure Transmitter
EJA310E Absolute Pressure Transmitter
EJA430E Gauge Pressure Transmitter
EJA438E Diaphragm Sealed Gauge Pressure Transmitter
EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)
EJA440E Gauge Pressure Transmitter
EJA530E In-Line Mount Gauge Pressure Transmitter
| EJX110A-EMS5G-919DB/KS21/D4 |
| EJX110A-EMS4G-919DB/KU22/N4 |
| EJX110A-EMS4J-919EN/KU22/M11/T13 |
| EJX110A-EMS5G-92DDN/KU22/D3/T13 |
| EJX110A-FHS5G-914DJ/KS26/M01/T13/D1 |
|
EJX110A-FMS5G-914DJ/KS26/M01/T13/D3
|
