Grande internazionale del sistema limitato
|
Dettagli:
Termini di pagamento e spedizione:
|
| Modello: | EJA210E-DHS4J-912NN-EJ14A2SE01-B/D4 | Peso di trasporto: | 11kg |
|---|---|---|---|
| Portata di misura (capsula): | 1 a inH2O di 100kPa (4 - 400) | produttore: | YOKOGAWA |
| installazione: | Flangia montata | Nome di prodotto: | Moltiplicatore di pressione differenziale montato flangia |
| Codice di HS: | 90261000 | Garanzia: | 1 anno |

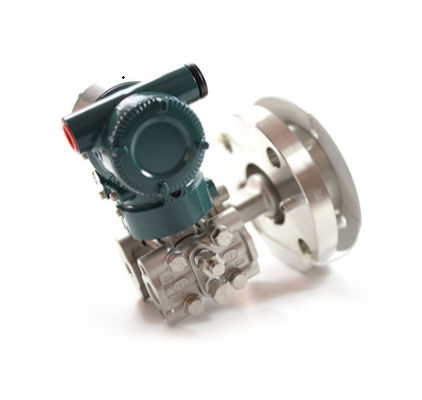

EJA210E-DHS4J Yokogawa Flange Mounted Differential Pressure Transmitter
Description:
Manufacturer : Yokogawa
Product No. : EJA210E-DHS4J-912NN-EJ14A2SE01-B/D4
Product type : EJA210E Flange Mounted Differential Pressure Transmitter
Measurement span (capsule) : H = 5 to 500kPa (20 to 2000 inH2O)
Low pressure side wetted parts material : S = ASTM CF-8M Cover flange and process connector, elloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others) Capsule, Teflon-coated 316L SST Capsule gasket, 316 SST Drain/Vent plug
Low pressure side Process connections : 4 = with 1/2 NPT female process connector
Installation : 9 = Horizontal piping type and left side high pressure
Amplifier housing : 1 = Cast aluminum alloy
N = Always N
Calibration units : D4 = M calibration (kgf/cm2 unit)
Shipping Weight : 11 Kg
Product advantages:
1.The high performance flange mounted differential pressure transmitter EJA210E can be used
to measure levels of densities of solidifying or precipitating liquids.
2.EJA210E outputs a 4 to 20 mADC signal corresponding to the measured differential
pressure. Its accurate and stable sensor can also measure the static pressure which can be shown on
the integral indicator or remotely monitored via BRAIN or HART communications.
3. Other key features include quick response, remote set-up using communications
and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low
Power) protocol types are also available.
4.All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power
types, are certified as complying with SIL 2 for safety requirement.
Product applications:
| EJA210E-JMS4J-912DN-EJ14A2SE01-B |
| EJA210E-JMS5J-912NN-WA13A1SW00-B/D4 |
| EJA210E-DMS4J-912DN-EJ14A2SE01-B/D4 |
| EJA210E-JHS4J-912DN-EA14A1SE01-B/D4 |
| EJA210E-JMS3J-919EN-WA12B2WW00-B/D4 |
| EJA210E-JHS4J-917DN-EA14B1SE03-B/D3 |
| EJA210E-DHS4J-912NN-EJ14A2SE01-B/D4 |
| EJA210E-JMS4J-912DN-WA12A2WW00-B/D4 |
| EJA210E-JMS5G-917EN-WD22C2WW00-B |
| EJA210E-JMS5G-919DN-WA12C1WW00-B/KU22/D4/X2/M0W/T52 |
| EJA210E-JHS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56 |
| EJA210E-JMS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56 |
| EJA210E-JMS4G-92DDN-WA23C2HW00-B/KS21/A/D4/M1W/T56 |
EJX110A Differential Pressure Transmitter
EJX118A Diaphragm Sealed Differential Pressure Transmitter
EJX130A Differential Pressure Transmitter
EJX120A Differential Pressure Transmitter
EJX310A Absolute Pressure Transmitter
EJX430A Gauge Pressure Transmitter
EJX440A Gauge Pressure Transmitter
EJX510A and EJX530A Absolute and Gauge Pressure Transmitter
EJX610A and EJX630A Absolute and Gauge Pressure Transmitter
EJX210A Flange Mounted Differential Pressure Transmitter
EJA110E Differential Pressure Transmitter
EJA115E Low Flow Transmitter
EJA118E Diaphragm Sealed Differential Pressure Transmitter
EJA510E and EJA530E Absolute and Gauge Pressure Transmitter
EJA120E Differential Pressure Transmitter
EJA130E Differential Pressure Transmitter
EJA210E Flange Mounted Differential Pressure Transmitter
EJA310E Absolute Pressure Transmitter
EJA430E Gauge Pressure Transmitter
EJA438E Diaphragm Sealed Gauge Pressure Transmitter
EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)
EJA440E Gauge Pressure Transmitter
