EJA510E-JCS4N-019DL/KU22 EJA510E In-Line Mount Absolute Pressure Transmitter

EJA510E-JCS4N-019DL/KU22   EJA510E In-Line Mount Absolute Pressure Transmitter
EJA510E-JCS4N-019DL/KU22   EJA510E In-Line Mount Absolute Pressure Transmitter

Grande immagine :  EJA510E-JCS4N-019DL/KU22 EJA510E In-Line Mount Absolute Pressure Transmitter

Dettagli:
Luogo di origine: Il Giappone
Marca: YOKOGAWA
Certificazione: ROHS
Numero di modello: EJA510E-JCS4N-019DL/KU22
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1pc
Prezzo: negotiable
Imballaggi particolari: originale della fabbrica
Tempi di consegna: 8-10weeks
Termini di pagamento: T/T
Capacità di alimentazione: 50PCS/Month
Descrizione di prodotto dettagliata
Modello: EJA510E-JCS4N-019DL/KU22 installazione: Supporto in-linea
Accuratezza:: accuratezza del ± 0,055% (0,04% accuratezze facoltative) Peso di trasporto: 3KG
Nome di prodotto: Trasmettitore in-linea di pressione assoluta del supporto Tempo di reazione: spettrografia di massa 90
STABILITÀ: stabilità del ± 0,2% a 10 anni Certificato: Exida ed il TUV SIL 2/3 hanno certificato
Imballaggio: Cartone standard di Yokogawa

EJA510E-JCS4N-019DL/KU22 EJA510E In-Line Mount Absolute Pressure Transmitter









Description:


Manufacturer : Yokogawa
Product No. : Manufacturer : Yokogawa
Product No. : EJA530E-JCS4N-012EL/KU22/D3/M15

Product type : EJA530E Gauge Pressure Transmitter
Output signal : J = 4 to 20 mA DC Output with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule) : C = 0.5 to 10 MPa (72.5 to 1450 psi)
Wetted parts material : S = Process connector 316L SST #, Diaphragm Hastelloy C-276 *3#, Others 316L SST #
Process connections : 4 = 1/2 NPT female
N = Always N
0 = Always 0
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs
Integral indicator : E = Digital indicator with the range setting switch (push button)
Mounting bracket : L = 316 SST 2-inch pipe mounting
ATEX : KU22 = Combined KF22, KS21 and ATEX Intrinsically safe Ex ic
Calibration units : D3 = bar calibration (bar unit)
Material certificate : M15 = Process Connector
Shipping weight : 3Kg

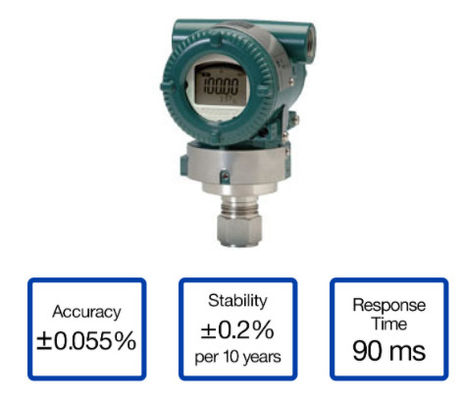

The EJA510E is our in-line mount absolute pressure transmitter in the series.



EJA510E features include:

  • ± 0.055% Accuracy (0.04% Accuracy optional)
  • ± 0.2% Stability per 10 years
  • 90 ms Response Time
  • Exida and TUV SIL 2/3 Certified
  • 8,700 psia Maximum Over Pressure
  • Local Parameter Setting (LPS)

Avaialble with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
