EJA510E-JAS4N-017DL/D3 EJA510E In-Line Mount Absolute Pressure Transmitter

Certificazione
La Cina Great System International Limited Certificazioni
Ciao Qiang. Nuovo 2021 anno felice! Cominciamo lavorare l'anno a partire dall'oggi. Molte grazie per la cooperazione nell'anno scorso e nella speranza la faremo per migliorare questo anno!

—— Alexandr Blagov

Spedisca in franchigia, grazie per la vostra onestà ed il vostro anno scorso che affidabile della società spero sarà di estendere insieme la nostra attività l'anno prossimo. Abbia una buona festa.

—— Hbabaee

È stato molto piacevole cooperare con voi con tutti questi anni e grazie mille per il vostri supporto gentile e migliore servizio!

—— Niloufar Soltani

Sono ora online in chat

EJA510E-JAS4N-017DL/D3 EJA510E In-Line Mount Absolute Pressure Transmitter

EJA510E-JAS4N-017DL/D3  EJA510E In-Line Mount Absolute Pressure Transmitter
EJA510E-JAS4N-017DL/D3  EJA510E In-Line Mount Absolute Pressure Transmitter

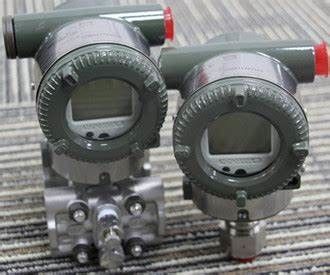

Grande immagine :  EJA510E-JAS4N-017DL/D3 EJA510E In-Line Mount Absolute Pressure Transmitter

Dettagli:
Luogo di origine: Il Giappone
Marca: YOKOGAWA
Certificazione: ROHS
Numero di modello: EJA510E-JAS4N-017DL/D3
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1pc
Prezzo: negotiable
Imballaggi particolari: originale della fabbrica
Tempi di consegna: 8-10weeks
Termini di pagamento: T/T
Capacità di alimentazione: 50PCS/Month
Descrizione di prodotto dettagliata
Modello: EJA510E-JAS4N-017DL/D3 Massimo sopra pressione: 8.700 lb/po quadrato ass.
Accuratezza:: accuratezza del ± 0,055% (0,04% accuratezze facoltative) produttore: YOKOGAWA
Imballaggio: Cartone standard di Yokogawa Nome di prodotto: Trasmettitore in-linea di pressione assoluta del supporto
Tempo di reazione: spettrografia di massa 90 STABILITÀ: stabilità del ± 0,2% a 10 anni
Certificato: Exida ed il TUV SIL 2/3 hanno certificato Regolazione: Regolazione locale di parametro (LPS)

EJA510E-JAS4N-017DL/D3 EJA510E In-Line Mount Absolute Pressure Transmitter













Description:


Manufacturer : Yokogawa
Product No. : EJA510E-JAS4N-017DL/D3
Product type : EJA510E Absolute Pressure Transmitter
Output signal : J = 4 to 20 mA DC Output with digital communication
Measurement span (capsule) : A = 0.1 to 2 MPa (14.5 to 290 psi)
Wetted parts material : S = Process connector 316L SST # , Diaphragm Hastelloy C-276 *3#, Others 316L SST #
Process connections : 4 = 1/2 NPT female
N = Always N
0 = Always 0
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 7 = 1/2 NPT female, two electrical connections with a blind plug*7
Mounting bracket : L = 316 SST 2-inch pipe mounting
Shipping weight : 4Kg









The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA510E is our in-line mount absolute pressure transmitter in the series.





EJA510E features include:

  • ± 0.055% Accuracy (0.04% Accuracy optional)
  • ± 0.2% Stability per 10 years
  • 90 ms Response Time
  • Exida and TUV SIL 2/3 Certified
  • 8,700 psia Maximum Over Pressure
  • Local Parameter Setting (LPS)

Avaialble with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
